Charts

Here's an idea: print out and laminate two charts back to back for toolbag durability!

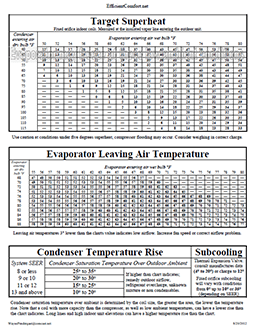

Along with superheat and condenser temperatures, this chart allows you to check the evaporator airflow from the entering wetbulb temperature.

PDF format, 95Kb

Open Chart

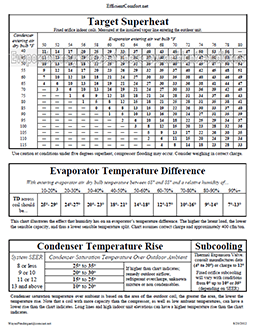

Like the previous chart, but allows you to determine the evaporator delta T range from the relative humidity.

PDF format, 96Kb

Open Chart

A superheat chart in graphical form.

PDF format, 67Kb

Open Chart

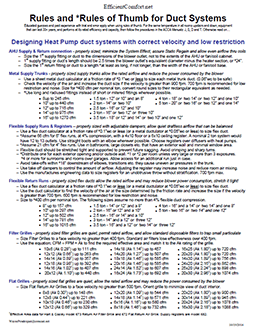

Rules and Rules of Thumb for heat pump duct systems. Updated for 4% flex duct compression.

PDF format, 110Kb

Open Chart

Although the Manual D procedure all but guarantees a duct system that will provide each room with the correct amount of air comfortably, quietly and at a low energy cost, it's often not done. More common is the "rules of thumb" and "trial and error" method.

With a variable speed blower, the rules of thumb guide (above right) should at least allow 400 cfm/ton across the coil . Do not rely on this guide to provide rated performance, efficiency or comfort throughout the home. Without some luck, open floor plans, open doors, and a lot of practical experience with trial and error, it's not likely to happen. The assured method is to follow the manuals, measure and calculate everything and assume nothing. Incorporate transfer grilles and dampers for air balancing where necessary.

An often over looked aspect of duct design, epesially with air handling unit supply plenums, is the System Effect and Static Regain. This article from ACHR News Extra Edition is reccomened reading.

Do you have any questions or suggestions? Let Me Know!
