Manual D Friction Rate Calculator v1.2 Enter and adjust the parameters in the blue boxes. Click the "Calculate" button for the results.
Efficient Comfort Logo

ACCA Manual D Friction Rate Calculator

  Manufacturer's Blower Data (TESP @ Fan Speed = sCFM)
Total External Static Pressure (TESP) "wc
  @ Speed
  = sCFM

  additional Device Pressure Losses (DPL)
typical values       Comments
0.1 - 0.5   Refrigerant or hot water coil
0.05 - 0.1   Standard efficiency filter
0.1 - 0.5   Mid or high efficiency filter
0.06 - 0.15   Electronic Air Cleaner
0.03   Supply register or diffuser
0.03   Return grille
0.03   Balancing damper
      Other device

  Total additional device pressure losses (DPL) 0.14 "wc

Available Static Pressure for duct pressure losses (ASP)
0.16 "wc

Total Effective Length (TEL) of longest run   TEL = equivalent length of fittings + length of duct

Supply TEL ft Return TEL ft TEL= 260 ft

Design Friction Rate 0.06   "wc/100ft

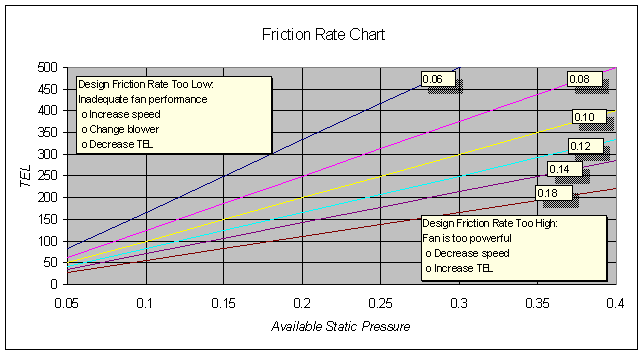

  Friction Rate Chart
